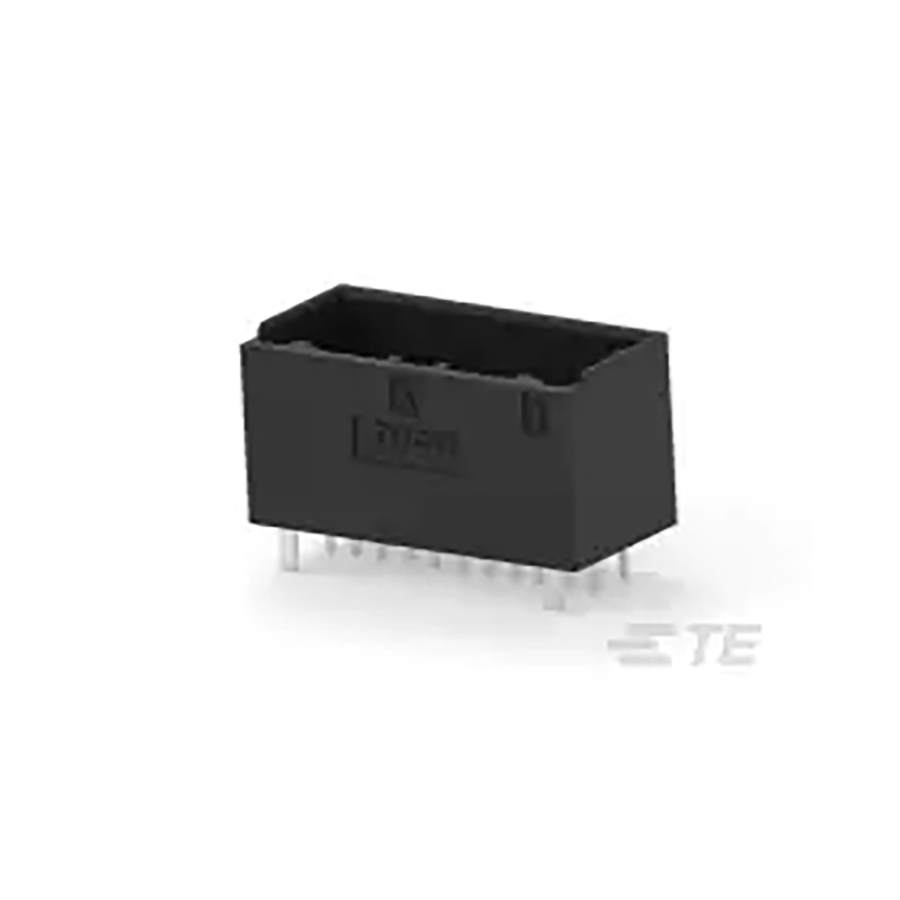

1-1827872-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1827872-1
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Plug, Tab Number of Positions:22 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 24.5872 mm |
| Width | 9.3472 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 12.446 mm |
| Packaging | Tube |
| Voltage Rating | 125 V |
| Depth | 11.3 mm |
| Halogen Free | Halogen Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2 mm |
| Number of Terminals | 22 |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Vertical |
| Operating Supply Voltage | 125 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 22 |
| ELV | Compliant |
| Connector Type | Header, Plug, Tab |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Row Spacing | 3.29946 mm |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Connector System | Wire-to-Board |
| Contact Style | Straight |
| Max Voltage Rating (AC) | 125 V |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| PCB Thickness | 1.6002 mm |
| Tail Length | 3.05 mm |
| Contact Gender | Male |
| VDE Tested | No |
| Preloaded | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Mating Retention | Without |
| Mating Alignment | With |
| Termination Post Length | 3.05 mm |
Stock: 1335
Distributors
pcbx
pcbxUnit Price$3.14130
Ext.Price$3.14130
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.14130 | $3.14130 |
| 10 | $2.92939 | $29.29390 |
| 25 | $2.73177 | $68.29425 |
| 50 | $2.54748 | $127.37400 |
| 100 | $2.37563 | $237.56300 |
| 300 | $2.21537 | $664.61100 |
| 500 | $2.06592 | $1032.96000 |
| 1000 | $1.92658 | $1926.58000 |
